Introduction

RecyclerListView uses “cell recycling” to reuse views that are no longer visible to render items instead of creating new view objects. Creation of objects is very expensive and comes with a memory overhead which means as you scroll through the list the memory footprint keeps going up. Releasing invisible items off memory is another technique but that leads to creation of even more objects and lot of garbage collections. Recycling is the best way to render infinite lists that does not compromise performance or memory efficiency.

Apart from all performance benefits RecyclerListView comes with great features out of the box:

• Cross Platform, works on Web
• Supports staggered grid layouts
• Supports variable height items even if dimensions cannot be predetermined (prop - forceNonDeterministicRendering)
• Instant layout switching like going from GridView to ListView and vice versa
• End reach detections
• Horizontal Mode
• Viewability Events
• Initial render offset/index support
• Footer support
• Reflow support on container size change with first visible item preservation
• Scroll position preservation
• Window scrolling support for web
• (New) ItemAnimator interface added, customize to your will how RLV handles layout changes. Allows you to modify animations that move cells. You can do things like smoothly move an item to a new position when heightof one of the cells has changed.
• (New) Stable Id support, ability to associate a stable id with an item. Will enable beautiful add/remove animations and optimize re-renders when DataProvider is updated.
• (New) Sticky recycler items that stick to either the top or bottom.

Props

For full feature set have a look at prop definitions of RecyclerListView (bottom of the file). All ScrollView features like RefreshControl also work out of the box.

applyWindowCorrection usage

applyWindowCorrection is used to alter the visible window bounds of the RecyclerListView dynamically. The windowCorrection of RecyclerListView along with the current scroll offset are exposed to the user. The windowCorrection object consists of 3 numeric values:

• windowShift - Direct replacement of distanceFromWindow parameter. Window shift is the offset value by which the RecyclerListView as a whole is displaced within the StickyContainer, use this param to specify how far away the first list item is from window top. This value corrects the scroll offsets for StickyObjects as well as RecyclerListView.
• startCorrection - startCorrection is used to specify the shift in the top visible window bound, with which user can receive the correct Sticky header instance even when an external factor like CoordinatorLayout toolbar.
• endCorrection - endCorrection is used to specify the shift in the bottom visible window bound, with which user can receive correct Sticky Footer instance when an external factor like bottom app bar is changing the visible view bound.

Installation

npm install --save recyclerlistview

For latest beta:

npm install --save recyclerlistview@beta```

# Example

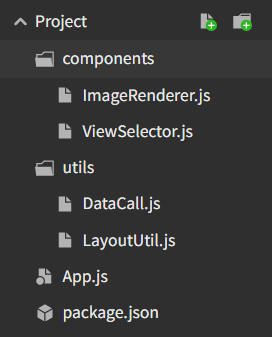

###### Required files
![Recycler-List](//images.ctfassets.net/nhlw0qkjuaf2/3nqtyCBDcNKtOFsauY6H10/bc039d6768ff7e286c1d9ccc1522169d/Recycler-List_files.png)

###### “ImageRenderer.js” File

```js
import React from 'react';
import { Image, Platform, View } from 'react-native';

const isIOS = Platform.OS === 'ios';

export class ImageRenderer extends React.Component {
  shouldComponentUpdate(newProps) {
    return this.props.imageUrl !== newProps.imageUrl;
  }
  componentWillUpdate() {
    //On iOS while recycling till the new image is loaded the old one remains visible. This forcefully hides the old image.
    //It is then made visible onLoad
    if (isIOS && this.imageRef) {
      this.imageRef.setNativeProps({
        opacity: 0,
      });
    }
  }
  handleOnLoad = () => {
    if (isIOS && this.imageRef) {
      this.imageRef.setNativeProps({
        opacity: 1,
      });
    }
  };
  render() {
    return (
      <View
        style={{
          flex: 1,
          margin: 3,
          backgroundColor: 'lightgrey',
        }}>
        <Image
          ref={ref => {
            this.imageRef = ref;
          }}
          style={{
            flex: 1,
          }}
          onLoad={this.handleOnLoad}
          source={{ uri: this.props.imageUrl }}
        />
      </View>
    );
  }
}

“ViewSelector.js” File

import React from 'react';
import { Text, TouchableHighlight } from 'react-native';

export class ViewSelector extends React.Component {
  constructor(props) {
    super(props);
    this.currentView = 0;
  }
  shouldComponentUpdate(newProps) {
    return this.props.viewType !== newProps.viewType;
  }
  onPressHandler = () => {
    this.currentView = (this.currentView + 1) % 4;
    this.props.viewChange(this.currentView);
  };
  render() {
    return (
      <TouchableHighlight
        style={{
          height: 60,
          paddingTop: 20,
          backgroundColor: 'black',
          alignItems: 'center',
          justifyContent: 'space-around',
        }}
        onPress={this.onPressHandler}>
        <Text style={{ color: 'white' }}>
          Tap to Change View Type: {this.props.viewType}
        </Text>
      </TouchableHighlight>
    );
  }
}

“DataCall.js” File

export class DataCall {
  // Just simulating incremental loading, don't infer anything from here
  static async get(start, count) {
    const responseHusky = await fetch('https://dog.ceo/api/breed/husky/images');
    const responseBeagle = await fetch(
      'https://dog.ceo/api/breed/beagle/images'
    );

    const responseJsonHusky = await responseHusky.json();
    const responseJsonBeagle = await responseBeagle.json();

    const fullData = responseJsonHusky.message.concat(
      responseJsonBeagle.message
    );

    const filteredData = fullData.slice(
      start,
      Math.min(fullData.length, start + count)
    );
    return filteredData;
  }
}

“LayoutUtil.js” File

import { LayoutProvider } from 'recyclerlistview';
import { Dimensions } from 'react-native';

export class LayoutUtil {
  static getWindowWidth() {
    // To deal with precision issues on android
    return Math.round(Dimensions.get('window').width * 1000) / 1000 - 6; //Adjustment for margin given to RLV;
  }
  static getLayoutProvider(type) {
    switch (type) {
      case 0:
        return new LayoutProvider(
          () => {
            return 'VSEL'; //Since we have just one view type
          },
          (type, dim, index) => {
            const columnWidth = LayoutUtil.getWindowWidth() / 3;
            switch (type) {
              case 'VSEL':
                if (index % 3 === 0) {
                  dim.width = 3 * columnWidth;
                  dim.height = 300;
                } else if (index % 2 === 0) {
                  dim.width = 2 * columnWidth;
                  dim.height = 250;
                } else {
                  dim.width = columnWidth;
                  dim.height = 250;
                }
                break;
              default:
                dim.width = 0;
                dim.heigh = 0;
            }
          }
        );
      case 1:
        return new LayoutProvider(
          () => {
            return 'VSEL';
          },
          (type, dim) => {
            switch (type) {
              case 'VSEL':
                dim.width = LayoutUtil.getWindowWidth() / 2;
                dim.height = 250;
                break;
              default:
                dim.width = 0;
                dim.heigh = 0;
            }
          }
        );
      case 2:
        return new LayoutProvider(
          () => {
            return 'VSEL';
          },
          (type, dim) => {
            switch (type) {
              case 'VSEL':
                dim.width = LayoutUtil.getWindowWidth();
                dim.height = 200;
                break;
              default:
                dim.width = 0;
                dim.heigh = 0;
            }
          }
        );
      default:
        return new LayoutProvider(
          () => {
            return 'VSEL';
          },
          (type, dim) => {
            switch (type) {
              case 'VSEL':
                dim.width = LayoutUtil.getWindowWidth();
                dim.height = 300;
                break;
              default:
                dim.width = 0;
                dim.heigh = 0;
            }
          }
        );
    }
  }
}

“package.json” File

{
  "dependencies": {
    "recyclerlistview": "1.3.4",
    "@expo/vector-icons": "^13.0.0",
    "react-native-elements": "0.18.5"
  }
}

“App.js” File

import React, { Component } from 'react';
import { View, StyleSheet, ActivityIndicator } from 'react-native';
import { RecyclerListView, DataProvider } from 'recyclerlistview';
import { DataCall } from './utils/DataCall';
import { LayoutUtil } from './utils/LayoutUtil';
import { ImageRenderer } from './components/ImageRenderer';
import { ViewSelector } from './components/ViewSelector';

export default class App extends Component {
  constructor(props) {
    super(props);
    this.state = {
      dataProvider: new DataProvider((r1, r2) => {
        return r1 !== r2;
      }),
      layoutProvider: LayoutUtil.getLayoutProvider(0),
      images: [],
      count: 0,
      viewType: 0,
    };
    this.inProgressNetworkReq = false;
  }
  componentWillMount() {
    this.fetchMoreData();
  }
  async fetchMoreData() {
    if (!this.inProgressNetworkReq) {
      //To prevent redundant fetch requests. Needed because cases of quick up/down scroll can trigger onEndReached
      //more than once
      this.inProgressNetworkReq = true;
      const images = await DataCall.get(this.state.count, 20);
      this.inProgressNetworkReq = false;
      this.setState({
        dataProvider: this.state.dataProvider.cloneWithRows(
          this.state.images.concat(images)
        ),
        images: this.state.images.concat(images),
        count: this.state.count + 20,
      });
    }
  }
  rowRenderer = (type, data) => {
    //We have only one view type so not checks are needed here
    return <ImageRenderer imageUrl={data} />;
  };
  viewChangeHandler = viewType => {
    //We will create a new layout provider which will trigger context preservation maintaining the first visible index
    this.setState({
      layoutProvider: LayoutUtil.getLayoutProvider(viewType),
      viewType: viewType,
    });
  };
  handleListEnd = () => {
    this.fetchMoreData();

    //This is necessary to ensure that activity indicator inside footer gets rendered. This is required given the implementation I have done in this sample
    this.setState({});
  };
  renderFooter = () => {
    //Second view makes sure we don't unnecessarily change height of the list on this event. That might cause indicator to remain invisible
    //The empty view can be removed once you've fetched all the data
    return this.inProgressNetworkReq
      ? <ActivityIndicator
          style={{ margin: 10 }}
          size="large"
          color={'black'}
        />
      : <View style={{ height: 60 }} />;
  };

  render() {
    //Only render RLV once you have the data
    return (
      <View style={styles.container}>
        <ViewSelector
          viewType={this.state.viewType}
          viewChange={this.viewChangeHandler}
        />
        {this.state.count > 0
          ? <RecyclerListView
              style={{ flex: 1 }}
              contentContainerStyle={{ margin: 3 }}
              onEndReached={this.handleListEnd}
              dataProvider={this.state.dataProvider}
              layoutProvider={this.state.layoutProvider}
              rowRenderer={this.rowRenderer}
              renderFooter={this.renderFooter}
            />
          : null}
      </View>
    );
  }
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    alignItems: 'stretch',
    justifyContent: 'space-between',
  },
});

Tutorial

Coming Soon…
