Section Grid

By Utkarsh Lubal

Published in UI

February 21, 2023

1 min read

Introduction

This library export two components - FlatGrid (similar to FlatList) and SectionGrid (similar to SectionList). Both components render a Grid layout that adapts itself to various screen resolutions.

Instead of passing an itemPerRow argument, you pass itemDimension and each item will be rendered with a dimension size equal to or more than (to fill the screen) the given dimension.

This article is about SectionGrid.

Installing

npm install react-native-super-grid

Usage (SectionGrid)

import { SectionGrid } from 'react-native-super-grid';

<SectionGrid
  itemDimension={130}
  sections={[
    {
      title: 'Numbers',
      data: [1,2,3,4,5,6],
    },
    {
      title: 'Alphabets',
      data: ['A', 'B', 'C', 'D', 'E'],
    },
  ]}
  renderItem={({ item }) => (<Text>{item}</Text>)}
  renderSectionHeader={({ section }) => (
    <Text style={{ fontSize: 20 }}>{section.title}</Text>
  )}
/>

Properties

Property	Type	Default Value	Description
renderItem	Function		Function to render each object. Should return a react native component. Same signature as that of FlatList/SectionList’s renderItem (with an additional key `rowIndex`).
data (for FlatGrid) sections (for SectionGrid)	Array		Data to be rendered. renderItem will be called with each item in this array. Same signature as that of FlatList/SectionList.
itemDimension	Number	120	Minimum width or height for each item in pixels (virtual).
fixed	Boolean	false	If true, the exact `itemDimension` will be used and won’t be adjusted to fit the screen.
spacing	Number	10	Spacing between each item.
style	FlatList styles (Object)		Styles for the container. Styles for an item should be applied inside `renderItem`. Note: If you set `adjustGridToStyles` to `true` then padding added in this prop will be used to adjust the total dimensions of the grid to reflect the padding in this style object.
additionalRowStyle	styles (Object)		Additional styles for rows (rows render multiple items within), apart from the generated ones.
itemContainerStyle	styles (Object)		Style for item’s container. Not needed for most cases.
staticDimension	Number		Specifies a static width or height for the container. If not passed, `maxDimension` will be used.
maxDimension	Number		Specifies a maximum width or height for the container. If not passed, full width/height of the screen will be used. Note: If you set `adjustGridToStyles` to `true` then you can alternatively use the `contentContainerStyle` prop and set `maxWidth` or `maxHeight`.
horizontal	boolean	false	If true, the grid will be scrolling horizontally. If you want your item to fill the height when using a horizontal grid, you should give it a height of ‘100%‘. This prop doesn’t affect the SectionGrid, which only scrolls vertically.
onLayout	Function		Optional callback ran by the internal `FlatList` or `SectionList`’s `onLayout` function, thus invoked on mount and layout changes.
listKey	String		A unique identifier for the Grid. This key is necessary if you are nesting multiple FlatGrid/SectionGrid inside another Grid (or any VirtualizedList).
keyExtractor	Function		A function `(item, rowItemIndex) => {String}` that should return a unique key for the item passed.
invertedRow	boolean		Reverses the direction of row items. It can be used with the `inverted` property.
maxItemsPerRow	number		Specifies the maximum number of items to render per row
contentContainerStyle	styles (Object)		This is the regular FlatList/SectionList prop. If you set `adjustGridToStyles` to `true` and specify `maxWidth` or `maxHeight` it will be used the same as `maxDimension`. In addition, padding added here will be used to adjust the total dimensions of the grid to reflect the padding in this style object.
adjustGridToStyles	boolean		Set to true when you want the library to automatically adjust the total dimensions of the grid based on `style` and `contentContainerStyle` props
customFlatList (for FlatGrid)	ElementType		Replaces `FlatList` in FlatGrid with ElementType. E.g. `Animated.FlatList`
customSectionList (for SectionGrid)	ElementType		Replaces `SectionList` in SectionGrid with ElementType. E.g. `Animated.SectionList`
onItemsPerRowChange	Function		A callback `(itemsPerRow: number) => void` that is called when number of items per row is determined.

All additional props you pass will be passed on to the internal FlatList/SectionList. This means you can make use of various props and methods like ListHeaderComponent, onEndReached, onRefresh…etc. While these are not tested for compatibility, most of them should work as expected.

In SectionGrid, section argument in methods like renderSectionHeader, renderSectionFooter, ItemSeparatorComponent will slightly different from the actual section you passed. The data key in the section will be the grouped versions of items (items that go in one row), and the original list of items can be found in originalData key. All other keys will remain intact.

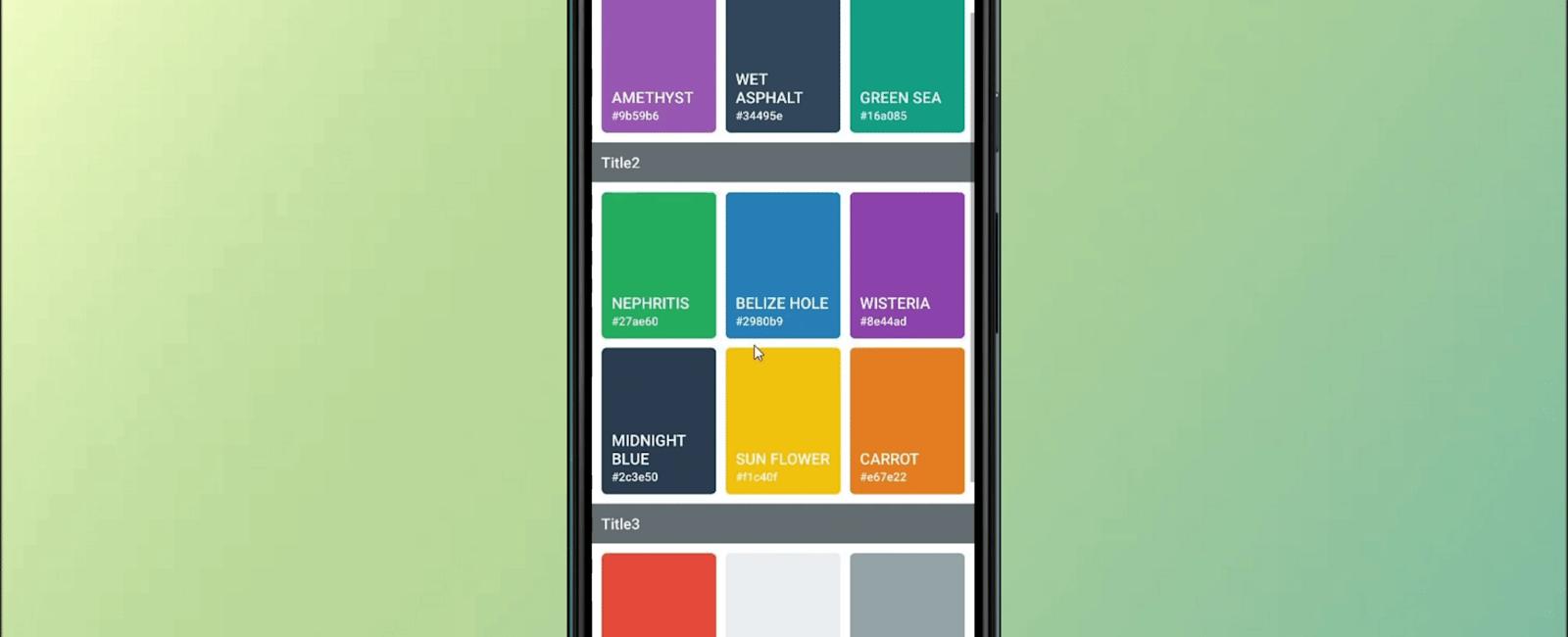

Example


import React, { Component } from 'react';
import { StyleSheet, View, Text } from 'react-native';
import { SectionGrid } from 'react-native-super-grid';

export default function Example() {
  const [items, setItems] = React.useState([
    { name: 'TURQUOISE', code: '#1abc9c' },
    { name: 'EMERALD', code: '#2ecc71' },
    { name: 'PETER RIVER', code: '#3498db' },
    { name: 'AMETHYST', code: '#9b59b6' },
    { name: 'WET ASPHALT', code: '#34495e' },
    { name: 'GREEN SEA', code: '#16a085' },
    { name: 'NEPHRITIS', code: '#27ae60' },
    { name: 'BELIZE HOLE', code: '#2980b9' },
    { name: 'WISTERIA', code: '#8e44ad' },
    { name: 'MIDNIGHT BLUE', code: '#2c3e50' },
    { name: 'SUN FLOWER', code: '#f1c40f' },
    { name: 'CARROT', code: '#e67e22' },
    { name: 'ALIZARIN', code: '#e74c3c' },
    { name: 'CLOUDS', code: '#ecf0f1' },
    { name: 'CONCRETE', code: '#95a5a6' },
    { name: 'ORANGE', code: '#f39c12' },
    { name: 'PUMPKIN', code: '#d35400' },
    { name: 'POMEGRANATE', code: '#c0392b' },
    { name: 'SILVER', code: '#bdc3c7' },
    { name: 'ASBESTOS', code: '#7f8c8d' },
  ]);

  return (
    <SectionGrid
      itemDimension={90}
      // staticDimension={300}
      // fixed
      // spacing={20}
      sections={[
        {
          title: 'Title1',
          data: items.slice(0, 6),
        },
        {
          title: 'Title2',
          data: items.slice(6, 12),
        },
        {
          title: 'Title3',
          data: items.slice(12, 20),
        },
      ]}
      style={styles.gridView}
      renderItem={({ item, section, index }) => (
        <View style={[styles.itemContainer, { backgroundColor: item.code }]}>
          <Text style={styles.itemName}>{item.name}</Text>
          <Text style={styles.itemCode}>{item.code}</Text>
        </View>
      )}
      renderSectionHeader={({ section }) => (
        <Text style={styles.sectionHeader}>{section.title}</Text>
      )}
    />
  );
}

const styles = StyleSheet.create({
  gridView: {
    marginTop: 20,
    flex: 1,
  },
  itemContainer: {
    justifyContent: 'flex-end',
    borderRadius: 5,
    padding: 10,
    height: 150,
  },
  itemName: {
    fontSize: 16,
    color: '#fff',
    fontWeight: '600',
  },
  itemCode: {
    fontWeight: '600',
    fontSize: 12,
    color: '#fff',
  },
  sectionHeader: {
    flex: 1,
    fontSize: 15,
    fontWeight: '600',
    alignItems: 'center',
    backgroundColor: '#636e72',
    color: 'white',
    padding: 10,
  },
});
